PianoVAE: VAE For Piano Notes Generation

A Pytorch Implementation of VAE-based musical model to generate and interpolate piano’notes using Nottingham dataset.

Table of Contents

Introduction

This is a Pytorch implementation of a musical model that capable to generate piano’notes and interpolate between them as the model latent space is continuous. The model is a variational autoencoder where the encoder and the decoder are LSTM networks. The model is trained on Nottingham dataset, you can download it from here.

Nottingham’ Dataset

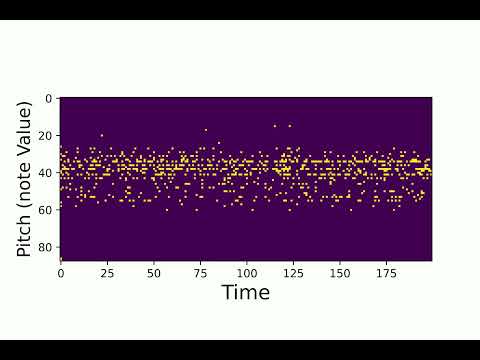

The Nottingham Music Database contains over 1000 Folk Tunes stored in a special text format. The dataset has been converted to a piano-roll format to be easily processed and visualised. Here is a sample from the dataset that you can listen to:

Sublime's custom image

Setup

The code is using pipenv as a virtual environment and package manager. To run the code, all you need is to install the necessary dependencies. open the terminal and type:

  • git clone https://github.com/Khamies/Piano-VAE.git
  • cd Piano-VAE
  • pipenv install

And you should be ready to go to play with code and build upon it!

Run the code

  • To train the model, run: python main.py
  • To train the model with specific arguments, run: python main.py --batch_size=64. The following command-line arguments are available:
    • Batch size: --batch_size
    • Learning rate: --lr
    • Embedding size: --embed_size
    • Hidden size: --hidden_size
    • Latent size: --latent_size

Training

The model is trained on 20 epochs using Adam as an optimizer with a learning rate 0.001. Here are the results from training the LSTM-VAE model:

  • KL Loss

  • Reconstruction loss

  • KL loss vs Reconstruction loss

  • ELBO loss

Inference

1. Sample Generation

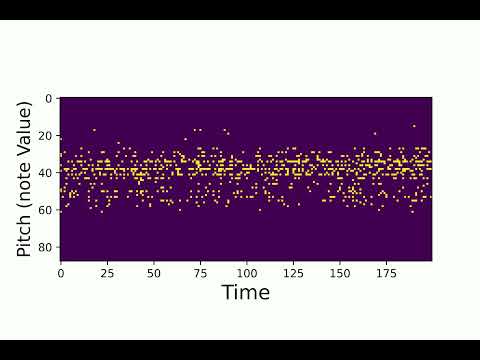

Here are generated samples from the model. We randomly sampled two latent codes z from standard Gaussian distribution. The following are the generated notes:

Sublime's custom image

2. Interpolation

Here are some samples from the interpolation test. We use number of interpolation = 32, and sequence length = 200.

  • First audio:

    First audio

  • Second audio:

    Second audio

An interpolation close to “first audio”

Second audio

An interpolation close to “second audio”

Second audio

Play with the model

To play with the model, a jupyter notebook has been provided, you can find it here

Acknowledgement

  • Big thanks to @montaserFath for reviewing the code!

Citation

@misc{Khamies2021Piano-VAE,
author = {Khamies, Waleed},
title = {A Pytorch Implementation of VAE-based musical model to generate and interpolate piano'notes using Nottingham dataset.},
year = {2021},
publisher = {GitHub},
journal = {GitHub repository},
howpublished = {\url{https://github.com/Khamies/Piano-VAE}},
}
